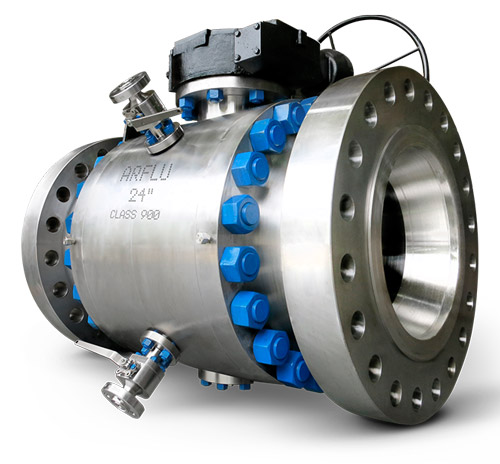

Trunnion Mounted Ball Valves
• 150 - 300 - 600 - 900 - 1500 - 2500
• Maximum Size:56”
• DBB or DIB Design
• Single Piston Effect & Double Piston Effect Seat
• Soft Seated & Metal to Metal
• Top Entry/Side Entry/Fully Welled Design
• PMSS (Primary Metal Secondary Soft) Design
Floating Ball Valves:
• 150 - 300 - 600 - 900 - 1500 - 2500
• Maximum Size:12”
• Low Emission Design
Main Design:
• API 6D/ISO 17292

Fully Welded Ball Valves
• 150 - 300 - 600 - 900 - 1500 - 2500
• Spherical Body Option Available
• Single Welded Option Available
• For above or underground installation
• Single Piston Effect & Double Piston Effect Seat
• Metal to Metal & PMSS (Primary Metal Secondary Soft) Design
Main Design:
• API 6D/ASME B16.34
• Maximum Size:56”

Cryogenic Ball Valves
• 150 - 300 - 600 - 900 - 1500
• Maximum Size:24”
• Extended Bonnet/Lip Seal/Cavity Pressure Relief
Main Design:
• API 6D/ISO 17292

DBB Ball Valves
• Double Block & Bleed Ball Valves:
• 150 - 300 - 600 - 900 - 1500
• Maximum Size:16”
• Emergency Sealant Injector (6" & Larger)
• Vent Valve (6" & Larger)
• Lifting Lugs & Supporting Feet (8" & Larger)
• Seat Pocket Overlay (On Request)
• Seals Area Overlay (On Request)
Main Design:
• ASME B16.34/API 6D
